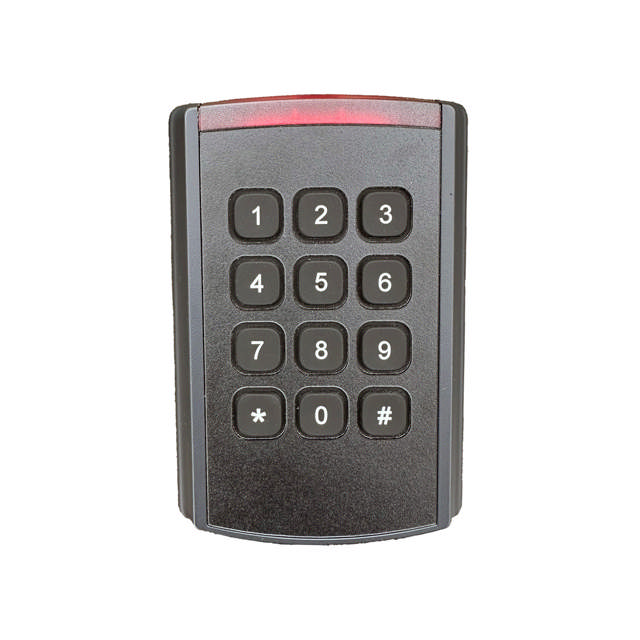

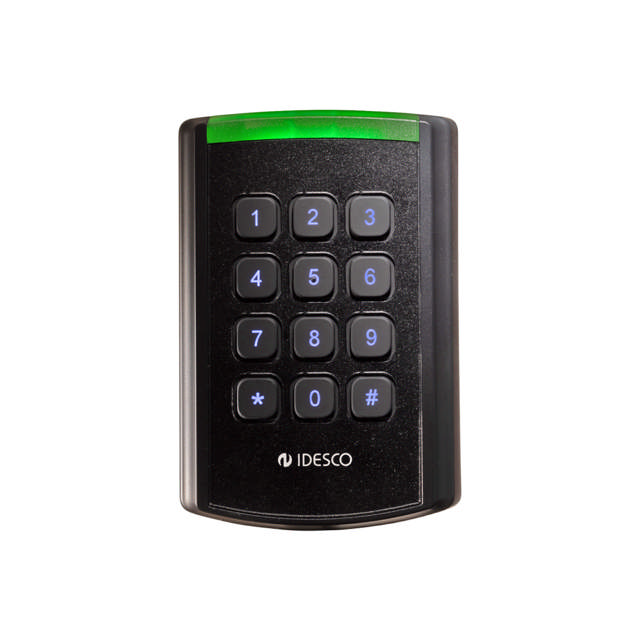

Idesco Quattro VM - Desfire/Mif - Pin - OSDPV2 6M

Idesco VM kortlæser med tastatur.

OSDPv2 og kabel tilslutning (6m.)

• Operating Frequency: 13,56MHz

• Voltage: +10 .... +30 VDC

• Current Consumption: 45mA @ 24VDC, max 90mA

• RFID chip support: MIFARE® DESFire EV1 & EV2 & EV3: UID + Application files , MIFARE® Classic: UID + Sectors, MIFARE® Ultralight UID + Pages, MIFARE® Plus UID security levels 1 and 3, MIFARE® SmartMX (MIFARE® Classic emulation mode).

• Additional Security feature for DESfire: Support for DESFire EV1 & EV2 & EV3 Random UID

• UID selection: Reader can be configured to read either 4 or 7 Byte UIDs, or both.

• Keypad: 3 x 4 (mechanical)

• Dimensions of housing (hxwxd): W: 84,48 mm x H:126,25 mm. Thickness: 28 mm (with cable), 28 mm + 8,5 mm (with connector)

• Material of housing: Plastic

• Colour: Black

• Customized versions: Yes, with sticker or lens

• Protection class IP67: with the pigtail cable option, IP54: with the connector option

• IK rating: IK-09

• Operational temperature range: -30 °C- +55 °C

• Storage temperature range: -30 °C- +55 °C

• I/O’s: 2 (1 General purpose input)

• Interfaces: OSDPv2

• EMC: Meets CE requirements

• Field strength: According to EN300330

• Encryption: AES or triple DES

• Connector: No

• Led: RGB

• Led control: By wire

• Buzzer: Yes (Buzzer modes can also be configured)

• Buzzer control: By wire

• Optical Tamper: Yes, configurable

• Re-read delay: Adjustable

• Configuration Only one DESfire EV1 / EV2 / EV3 conf card required
  Configure only after reset option

• Value file support: Reader can be set to credit / debit value from value file cards
